Wafer Butterfly Flanged Swing Check Valve Cast Iron 1.0/1.6 Mpa

Product Categories
China • Yuanda Valve Group Co., Ltd.
Contact Now

Wafer Butterfly Flanged Swing Check Valve Cast Iron 1.0/1.6 Mpa

  • 1
  • 2

Brand Name : Y

Model Number : DH77X-10/16

Place of Origin : China

MOQ : 10 pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10000 pcs per year

Delivery Time : 5-8 work days

Packaging Details : wooden box 1200*1100*1100

Product name : Flanged Swing Check Valve

Color : Customer's Request,blue

Standard : DIN,GB

Connection : Wafer

Medium : water

Size : DN40-400

Working temperature : ≤80℃

Pressure : Medium Pressure

Contact Now

Cast Iron Wafer Butterfly Check Valve 1.0/1.6 Mpa Flanged Swing Check Valve



effect



The function of butterfly check valve is to only allow the medium to flow in one direction and prevent the flow in one direction. Usually, this kind of valve works automatically. Under the action of fluid pressure flowing in one direction, the valve disc opens; When the fluid flows in the opposite direction, the fluid pressure and the self weight of the valve disc act on the valve seat, so as to cut off the flow



Main part and materials



Body Gery Iron,Ductile Iron
Disc Ductile Iron
Spring Stainless steel
Ring NBR
stem steel





Function



Type Pressure Shell test seal test temperature medium
DH77X-10 1.0mpa 1.5 mpa 1.1 mpa ≤80℃ water
DH77X-16 1.6mpa 2.4 mpa 1.8 mpa ≤80℃ water

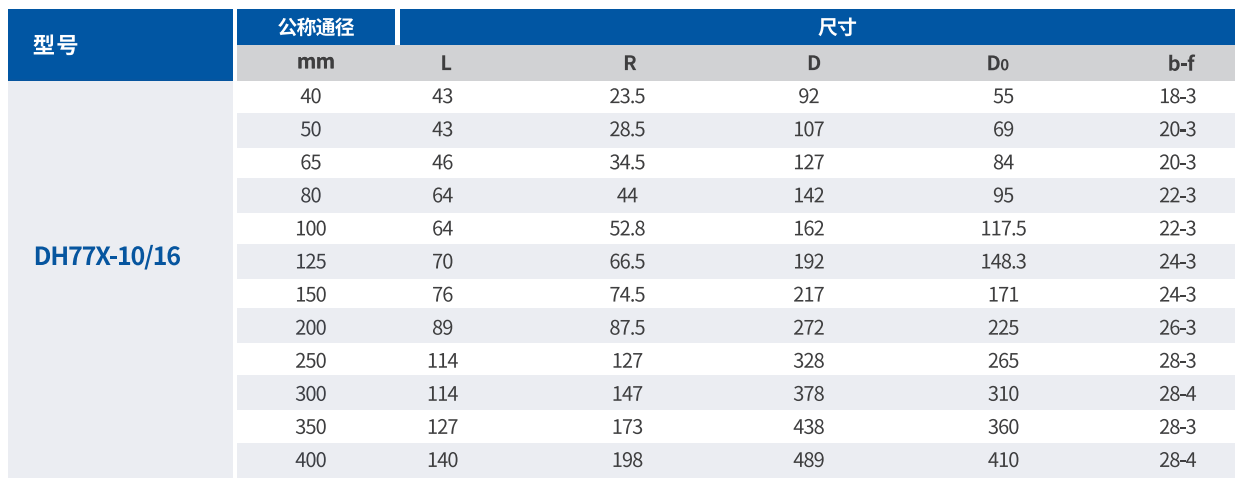

Dimension



Wafer Butterfly Flanged Swing Check Valve Cast Iron 1.0/1.6 Mpa
